How Do You Paint-Fill Laser Engraving Without Bleeding?

To paint-fill laser engraving without bleeding, seal the wood, apply laser-safe paper masking, engrave through it, clean the recess, then seal the freshly exposed fibers before adding thin coats of paint. Masking controls the mess; that second sealing step stops the grain from quietly carrying paint beyond the design.

QUICK TAKEAWAY

• Best sequence: Sand → seal → cure → mask → engrave → clean → seal the recess → paint → unmask.
• Best beginner fill: Compatible water-based acrylic paint on a decorative interior project.
• Best wood: Smooth, tight-grained stock or good plywood with a flat, sound veneer.
• Hands-on time: About 60–120 minutes for a small sign, plus drying and curing.
• Skill level: Confident beginner.

Why paint bleeds even when the surface is masked

Wood fibers and pores create tiny channels. Watery paint can travel through a raw engraved pocket, under the mask, and into the surrounding grain.

A pre-engraving clear coat makes the face easier to clean, but the laser exposes new raw fibers. Seal those fibers after engraving and before paint. That is the step masking alone cannot replace.

Choose the finish before you choose the laser settings

Your wood, sealer, mask, engraving depth, paint, and optional topcoat are one system. Test them on an offcut from the actual board. LightBurn’s Material Test tool compares speed, power, passes, and line interval. A borrowed setting is a rumor with numbers attached.

Safety: “dry” does not automatically mean “laser-safe”

Use only materials, coatings, and masks approved by their manufacturers and your laser manual. Glowforge warns that paints, dyes, adhesives, and plywood glues may be incompatible; unidentified materials can create fire, fumes, and equipment risks. Check labels and safety data sheets, maintain exhaust, and never leave an operating laser unattended.

Apply liquid sealer and paint after lasering unless the cured coating is specifically verified for laser processing. For serving pieces, children’s items, or heat, moisture, or food exposure, use a system explicitly approved for that use.

Tools and materials

• Laser-compatible wood or plywood with a smooth, intact face
• Scrap from the same sheet or board for a complete finish test
• 180- and 220-grit sandpaper or fine sanding pads
• Clear sealer compatible with the wood, paint, and optional topcoat
• Laser-compatible, firmly adhered paper masking or transfer tape
• Plastic squeegee or brayer
• Soft brush and suitable dust extraction
• Water-based acrylic craft paint or another compatible color fill
• Small artist’s brush, cosmetic wedge, or small plastic spreader
• Tweezers or a weeding tool
• Eye protection, ventilation, and the PPE required by each product label

Prep: build a sample that can fail cheaply

1. Use the real material. A pine scrap cannot predict oak or birch veneer.
2. Include real details. Test the smallest letters, thinnest lines, largest fill, and lightest color.
3. Record the system. Note the material, grit, sealer, mask, laser settings, paint, and dry times.
4. Perform a peel test. If the mask lifts the finish, the base is under-cured, poorly bonded, or incompatible.

How to paint-fill laser engraving without bleeding

1. Sand the face flat and stop at the right grit

Sand raw wood evenly with the grain. For many clear water-based systems, 180–220 grit is a sensible finishing range; the product instructions decide. General Finishes, for example, directs users to sand raw wood no finer than 220 grit before its High Performance water-based topcoat. Remove every trace of dust.

2. Seal the entire face

After verifying that the cured sealer is laser-compatible, apply thin, even coats of a product compatible with the wood and paint. Open grain may need filling or extra sealing. Let the finish cure—not merely feel dry—before masking. If you cannot verify the coating for laser processing, do not put it under the beam; engrave approved bare wood and test a post-engraving seal-and-paint method instead.

Dry times are product-specific. Rust-Oleum’s Clear B-I-N Advanced sheet, for example, lists 45–60 minutes to recoat and seven days to full cure under stated conditions. Your label wins.

3. Apply and burnish laser-safe paper masking

Cover the cured face without wrinkles or overlapping seams across the design. Burnish from the center outward, especially over grain valleys. Glowforge says protective coating must remain firmly affixed; discard it if it peels during processing.

4. Run an engraving test, then engrave the project

Use the lowest effective energy that creates a clean recess without destroying detail. There is no universal speed-and-power recipe. Focus, frame, test, inspect, then use the best cell for that material.

5. Clean soot and loose fibers from the recess

Leave the mask in place. Vacuum the engraving and lift loose char with a soft dry brush. If heavy char remains, fix the settings; clear sealer is not witness protection for a bad burn.

6. Seal the freshly engraved pocket

Apply a light coat of compatible clear sealer inside the engraving while the mask protects the face. Lock down the fibers; do not fill the recess with a clear swimming pool. Let it dry for the labeled time and add a second thin coat only if needed.

7. Add color in thin coats

Brush, dab, or squeegee paint across the recess without scrubbing the edges. Two thin coats preserve detail better than one thick blob. Follow recoat times and let each color set before adding another.

8. Remove the mask carefully

Follow the paint and mask timing guidance. Pull the mask slowly back over itself. If paint bridges a tiny detail, lightly score only the paint film before lifting.

9. Inspect, touch up, and topcoat only if needed

Inspect under raking light and touch up with a small brush. Topcoat only when needed and tested. General Finishes warns that clear coats over white or light paint can yellow or activate tannin bleed, so “clear” is not a promise of invisibility.

Pro-finish tips

• Seal twice for two different jobs. The first coat protects the face; the second blocks the exposed engraving.
• Use tight-grained stock for tiny text. Large pores make microscopic edges harder to control.
• Keep the final sample. It becomes the finish schedule for the next batch.
• Photograph before topcoat. If the color shifts, you will know which layer did it.

Where to save—and where not to cut corners

Safe places to save

• Use inexpensive craft acrylic for small decorative interior fills after a compatibility test.
• Make test pieces from project offcuts.
• Apply fill with a basic artist brush or cosmetic wedge instead of specialty dispensing tools.
• Skip the final topcoat on low-touch decor when the paint and sealer manufacturers allow it.

Do not cheap out here

• Known materials: Unknown coatings and adhesives do not belong under a laser beam.
• Base preparation: A mask cannot flatten torn veneer, open grain, or dust.
• Compatible sealer: It is doing the actual bleed control.
• Cure time: Masking a soft finish can pull the whole finish stack off in one very educational sheet.
• The sample: Ruining one offcut is cheaper than inventing a rustic distressing story for a customer order.

Common mistakes and fixes

• Paint feathers into the grain: Let it dry, repair as the finish permits, reseal the engraving, and refill. Address open grain on the next sample.
• Paint stains the face: Stop wiping pigment across porous wood. Seal, mask, and seal the recess.
• The mask lifts the clear: Let the base cure fully and test a compatible lower-tack mask.
• Paint pulls out: Use thinner coats, avoid bridges, and adjust removal timing.
• White fill turns cream or yellow: Wood tannins or the clear topcoat may be shifting the color. Test a blocking sealer and omit or change the topcoat.
• The recess looks muddy: Remove loose soot before sealing and reduce excess laser energy. See [INTERNAL LINK: How to prevent burn marks on laser-cut wood].

Cost, time, and skill-level summary

• Skill level: Confident beginner
• Hands-on time: About 60–120 minutes for a small sign or plaque
• Elapsed time: Commonly 1–3 days; a coating that requires a full cure before masking can extend the schedule
• Consumables: Roughly $15–$50 if you already own the laser and wood; this is a planning estimate, not a verified local price

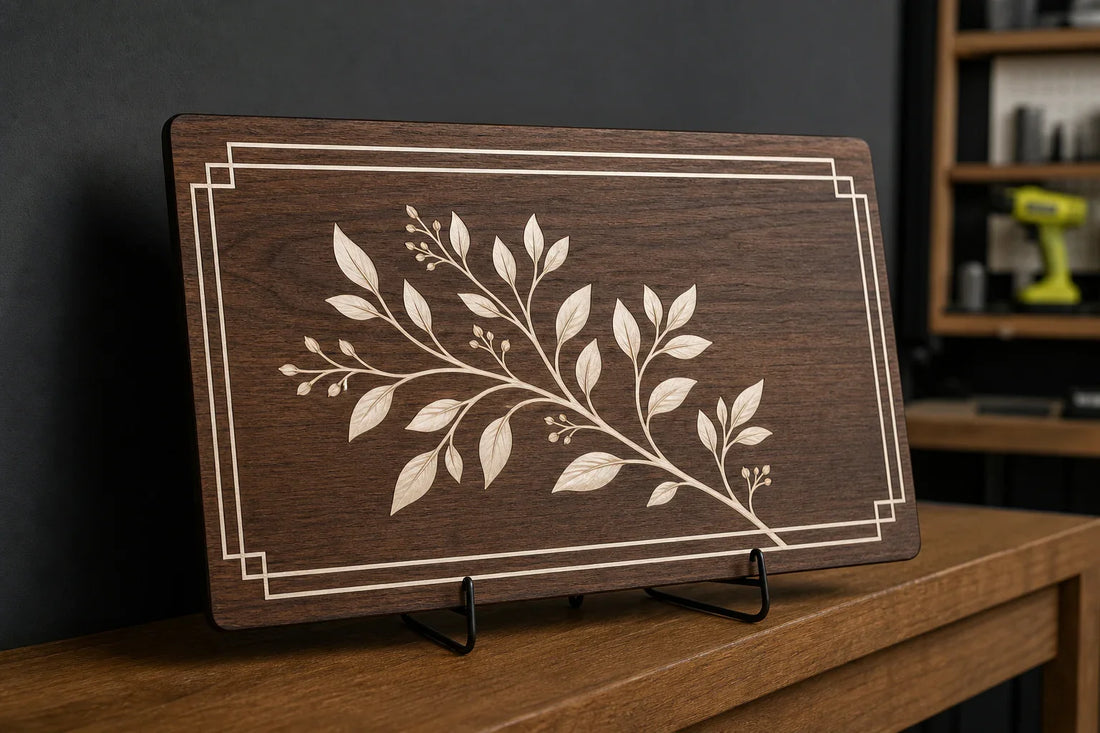

• Best first project: A flat, interior decorative sign with bold lettering and one fill color
• Biggest quality variable: Whether the exposed engraving is clean and sealed before paint touches it

FAQs

What paint is best for filling laser engraving on wood?

Water-based acrylic craft paint is an approachable choice for decorative indoor projects because it is easy to apply in thin coats. The best paint is still the one that adheres to your chosen sealer, suits the final use, and passes an offcut test.

Should I seal wood before or after laser engraving?

For the cleanest paint fill, do both: seal the face before masking and engraving, then seal the newly exposed engraved fibers before adding color. Verify that any coating placed in the laser is approved and fully cured first.

Can I paint-fill an engraving without masking?

Yes, especially on a smooth, fully sealed surface that can be wiped or sanded clean. Masking is usually more forgiving on wood, around fine detail, and when the surrounding finish must remain untouched.

Can I use spray paint for the fill?

Yes, after engraving, if the paint is compatible and you meet its ventilation, PPE, and fire-safety requirements. Keep coats light so they do not bridge small letters. Do not laser an unknown painted coating.

Is paint-filled engraving food-safe?

Not automatically. Keep decorative fills off cutting and food-contact surfaces unless every material in the cured system is explicitly approved by its manufacturer for the exact intended contact and use.

Clean color starts before the paint

A crisp paint fill is not a steadier-hand contest. Prepare the face, prove the settings, mask, and seal the raw engraving before color arrives. That extra clear coat has a suspiciously large effect.
